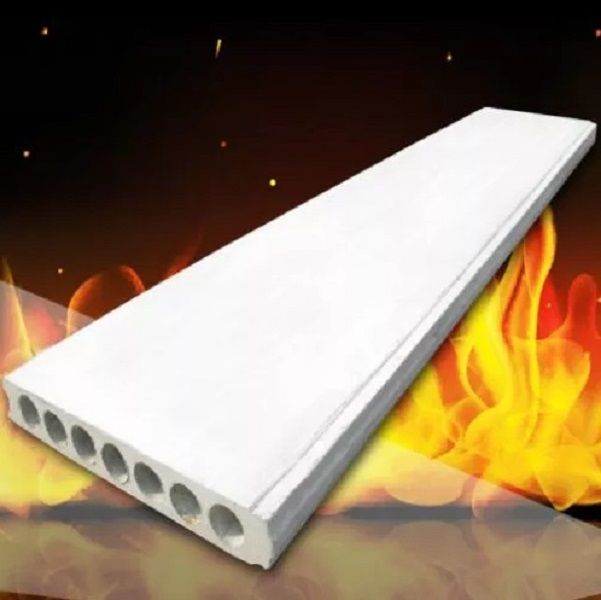

Lightweight fireproof wall GREEN PANEL

Fireproof wall green panel is a kind of inorganic building materials, It’s made of magnesium oxide, magnesium chloride, fly ash, plant fiber and mixed together with non-toxic chemical for  strength, which is widely used in interior wall, partition wall and exterior wall.

- It’s a non-combustible building material, it is non-combustible at 800℃, and remains flameless at 1200℃.The fire endurance can reach 4 hours in accordance with Chinese National Standard (GB/T9978.8-2008).

- Lighter than any other traditional panels, such as cement block, concrete block, cement panel etc.

The weight is only 40kg/m² for 100mm while the weight of the cement board is about 120-140 kg/m².

- Green wall boards with tongue and groove design enables 3-5 times faster installation compared with that of cement panel, or bricks.For one group with two skilled workers, they can install 40 m² per day.

- The overall project cost will be reduced about 30%.

• Length: 2400 mm – 3600 mm

• Width: 600 mm

• Thickness: 75/90/100/120/150/200 mm

• Thermal conductivity for wall green panel is 0.17 w/m°k, while cement panel is 0.66 w/ m°k.It can reduce the loss of heat in winter and cool in summer.

• For 120mm panel, the sound insulation is 43dB, while it can reach up to 51dB for structure with two layers of 90mm panel with 50mm rock wool in the middle.

• The raw materials for prefabricated partition wall board is without asbestos and no radioactivity, and also it does not contain formaldehyde.

- General industrial buildings, eg., high building, KTV

- Single house

- Public construction, eg, Hotels, hospitals, schools

- The fence of the factory

- Kitchen, bathroom, and the toilet of indoor wall.

- Also can paste on tiles and cement mortar.
